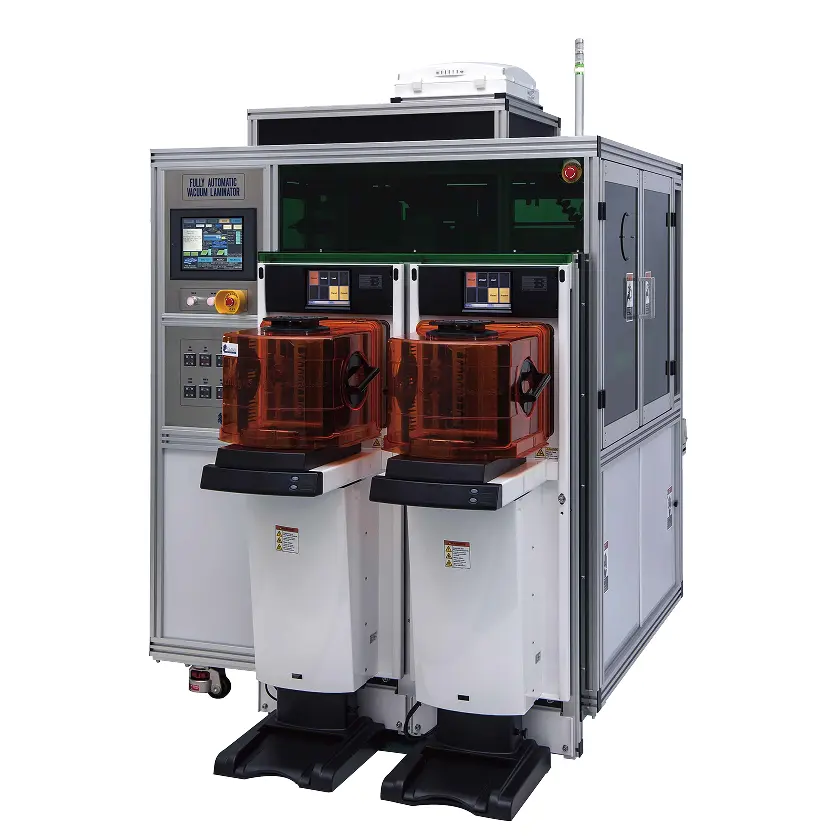

＜CPL-300CS＞Fully Automatic Panel Laminator
Feature
- This is a fully automatic laminating machine for special metal panels.（Please inquire for size support.）
- TTS digital cutter system is used to cut the panels to size.
- Other options are also supported.（Pre-cut tape, tape removal, LED UV irradiation, vacuum lamination, etc.）
- Please contact our representative for more information.
Specification
| Power | AC200-240V, Single Phase |
|---|---|
| Power Consumption | 3KVA |
| Clean Air Pressure(CDA) | 0.5 – 0.6 MPa( Min Flow Rate:120NL/min) |
| Vacuum | 650 – 750mmHg( Min Flow Rate:60NL/min) |
| Exhaust Duct Capacity | 【Normal Air】5.0m3/min,40mmH20 (100mm diameter SUS Flange duct connection) 【Contaminate Air】5.0m3/min,40mmH100 (100mm diameter SUS Flange duct connection) (Laser specification only) |
Equipment layout
| Dimension(WxDxHmm) | 2010x1280x2200 |
|---|---|
| Net Weight | Appx 1200Kg |

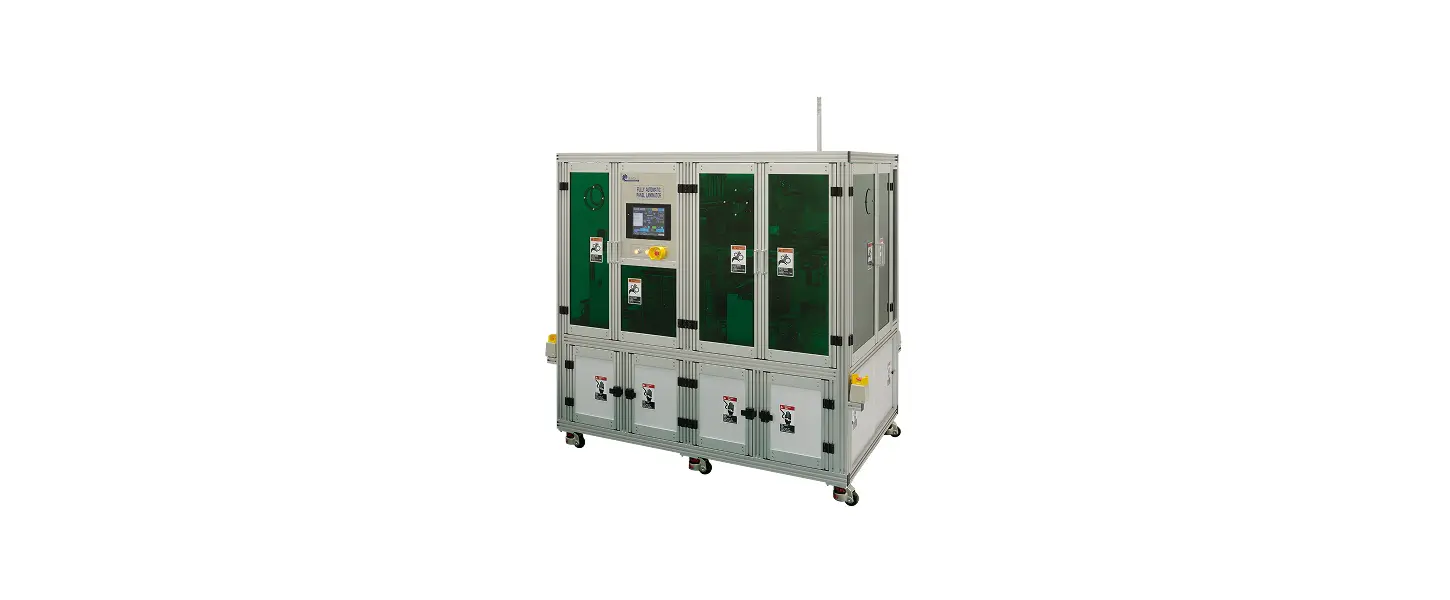

＜CMD-300CS＞Fully automatic panel debonder
Please contact our representative for more information.
